LB-L High-speed Packaging Polyolefin Shrink Film /

LB-L High-speed Packaging Polyolefin Shrink Film

LB-L is a specially designed shrink film for high-speed packing applications, with excellent transparency, good shrinkage, consistently strong seals and exceptional tensile strength.

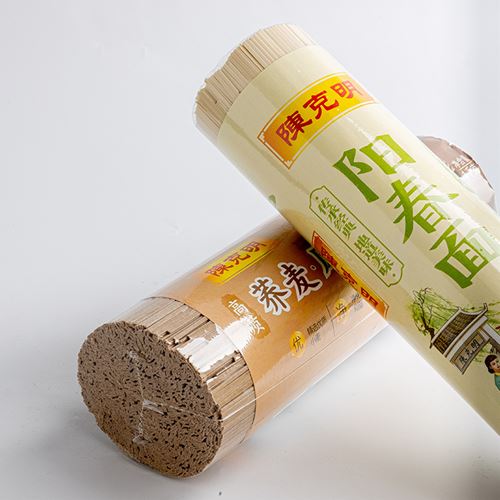

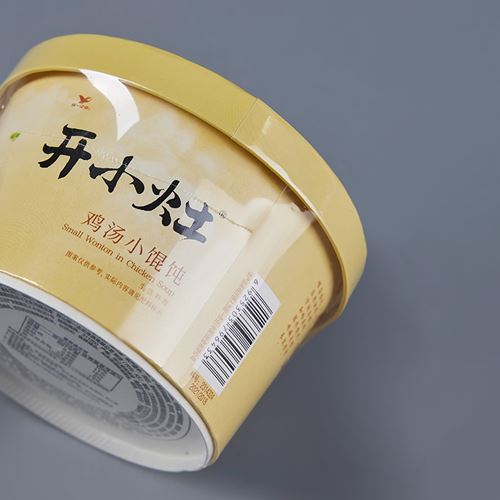

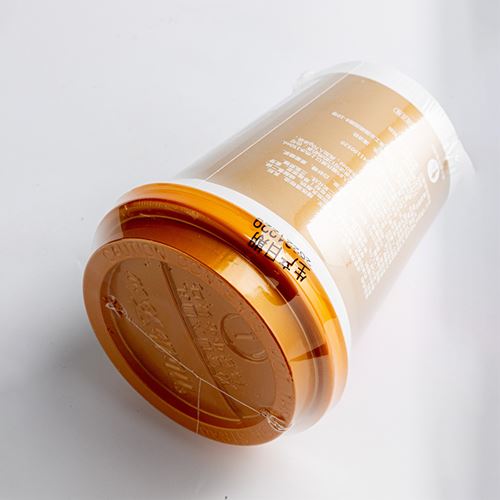

This film is especially suitable for high-speed pillow packaging, with good heat sealing and electrostatic sealing performance, which can reach maximum 250 packs per minute. It allows for short dwell times that maximize production and increase plant efficiency. This film is mostly used in the form of unfolded single ply reel type.

Thickness10um、11um、15um、19um

LB-L.pdf

Technical Index

TEST ITEM		UNIT	ASTM TEST	TYPICAL VALUES

GAUGE				10um	11um	15um	19um
TENSILE STRENGTH
Tensile Strength (MD)		N/mm²	D882	130	125	120	115
Tensile Strength (TD)				125	120	115	110
ELONGATION
Elongation(MD)		%	D882	105	105	108	110
Elongation (TD)				100	100	105	105
TEAR
MD at 400gm		gf	D1922	9.0	10.0	12.0	15.3
TD at 400gm				8.0	9.5	11.3	14.5
SEAL STRENGTH
MD\Hot Wire Seal		N/mm	F88	0.75	0.80	0.95	1.15
TD\Hot Wire Seal				0.80	0.85	0.98	1.25
COF (Film To Film)
Static			D1894	0.38	0.35	0.31	0.30
Dynamic				0.38	0.35	0.33	0.30
OPTICS
Haze			D1003	1.7	1.9	2.2	2.5
Clarity			D1746	99.0	98.0	98.5	97.5
Gloss @ 45Deg			D2457	88.5	88.0	87.5	87.5
BARRIER
Oxygen Transmission Rate		cc/㎡/day	D3985	14500	13200	10800	7300
Water Vapor Transmission Rate		gm/㎡/day	F1249	52.4	47.5	35.5	27.5
SHRINKAGE PROPERTIES				MD	TD	MD	TD
Free Shrinkage	100℃	%	D2732	18	25	17	23
	110℃			32	40	30	38
	120℃			55	58	55	57
	130℃			65	66	66	67
				MD	TD	MD	TD
Shrink Tension	100℃	Mpa	D2838	1.65	2.45	1.75	2.55
	110℃			2.85	3.65	2.90	3.55
	120℃			2.95	3.95	3.20	4.00
	130℃			2.75	3.40	2.60	3.20

Note: The above information is based on our internal evaluation data and is for reference only.
