LB-C Cross-Linked Shrink Film /

LB-C Cross-linked Heat Shrink Film

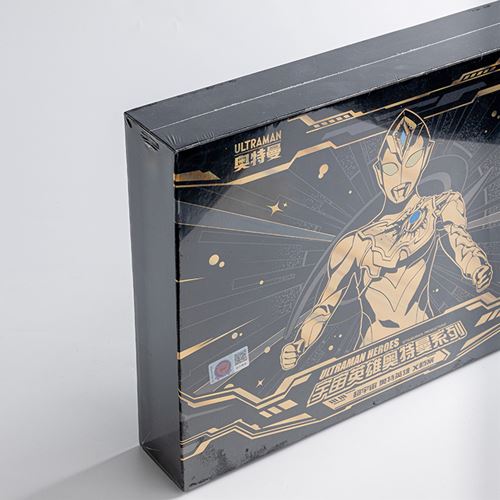

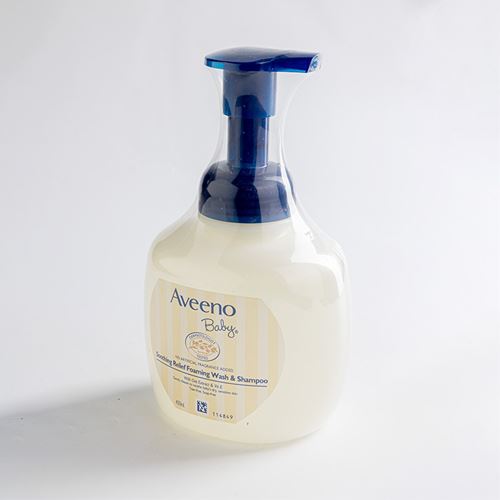

LB-C is a cross-linked polyolefin shrink film. While possessing the typical thermal shrink characteristics of polyolefins, this multifunctional shrink film boasts excellent tear resistance, durable and high-strength sealing properties, and superior shrinkage rates. Its enhanced toughness and tear resistance make the packaging more robust. The exceptional sealing effect ensures a firm and long-lasting seal, completely eliminating the "threading" phenomenon at the sealing points. The outstanding shrinkage rate (up to 80%) delivers perfect shrink packaging performance, allowing the film to conform more closely and provide an outstanding display for your products. In addition to delivering excellent packaging results for conventional products, it is also an ideal choice for combined packaging. LB-S is suitable for various manual, semi-automatic, and automatic packaging machines.

Thickness12um、15um、19um、25um、30um、38um

10um、13um、17um、22um

LB-C.pdf LB-C..pdf

Technical Index

TEST ITEM		UNIT	ASTM TEST	TYPICAL VALUES

GAUGE				12um	15um		19um	25um	30um		38um
TENSILE STRENGTH
Tensile Strength (MD)		N/mm²	D882	130	133		133	125	120		115
Tensile Strength (TD)				125	123		123	120	115		110
TENSILE STRENGTH
Elongation(MD)		%	D882	115	120		120	118	125		130
Elongation (TD)				105	110		110	113	115		120
TEAR
MD at 400gm		gf	D1922	11.5	14.5		18.5	27.0	32.0		38.5
TD at 400gm				12.5	17.0		22.5	30.0	35.0		42.5
SEAL STRENGTH
MD\Hot Wire Seal		N/mm	F88	1.13	1.29		1.45	1.75	2.15		2.10
TD\Hot Wire Seal				1.18	1.43		1.65	1.75	2.10		2.10
COF (Film To Film)		-
Static			D1894	0.23	0.19		0.18	0.21	0.23		0.25
Dynamic				0.23	0.19		0.18	0.21	0.23		0.25
OPTICS
Haze			D1003	2.3	2.6		3.5	3.8	4.2		4.8
Clarity			D1746	98.5	98.8		98.0	97.5	94.0		92.0
Gloss @ 45Deg			D2457	88.5	88.0		87.5	86.0	86.0		85.0
BARRIER
Oxygen Transmission Rate		cc/㎡/day	D3985	10300	9500		6200	5400	4200		3700
Water Vapor Transmission Rate		gm/㎡/day	F1249	32.5	27.5		20.5	14.5	11		9.5
SHRINKAGE PROPERTIES				MD		TD		MD		TD
Free Shrinkage	100℃	%	D2732	17.5		27.5		16.0		26.0
	110℃			36.5		44.5		34.0		43.0
	120℃			70.5		72.0		68.5		67.0
	130℃			81.0		79.5		80.0		79.0
				MD		TD		MD		TD
Shrink Tension	100℃	Mpa	D2838	2.30		2.55		2.70		2.85
	110℃			2.90		3.85		3.40		4.10
	120℃			3.45		4.25		3.85		4.65
	130℃			3.20		3.90		3.30		4.00

TEST ITEM	UNIT	ASTM TEST		TYPICAL VALUES
GAUGE				10um	13um	17um	22um
TENSILE STRENGTH
Tensile Strength (MD)	N/mm²	D882		130	130	130	125
Tensile Strength (TD)	N/mm²	D882		125	125	125	120
Elongation
Elongation(MD)	%	%		110	115	118	120
Elongation (TD)	%	%		105	110	108	115
TEAR
MD at 400gm	N/mm	F88		0.96	1.2	1.25	1.5
TD at 400gm	N/mm	F88		1.06	1.35	1.45	1.65
COF (Film To Film)
Static		D1894		0.24	0.21	0.18	0.19
Dynami		D1894		0.24	0.21	0.18	0.19
OPTICS
Haze		D1003		2.2	2.4	2.6	2.9
Clarity		D1746		98.5	98.5	98	98
Gloss @ 45Deg		D2457		89	88.5	88	86.5
BARRIER
Oxygen Transmission Rate	cc/㎡/day	D3985		12100	9700	7400	6800
Water Vapor Transmission Rate	gm/㎡/day	F1249		40.5	32.5	25.3	19.5
SHRINKAGE PROPERTIES				MD		TD
Free Shrinkage	100℃	%	D2732	18		28
	110℃			37		45
	120℃			70		72
	130℃			81		79
				MD		TD
Shrink Tension	100℃	Mpa	D2838	2.20		2.65
	110℃			2.66		3.80
	120℃			2.85		4.00
	130℃			2.80		3.90

Note: The above information is based on our internal evaluation data and is for reference only.
